Bosch GCM 305-216 D Mitre Saw - 0601B49000

GCM 305-216 D PROFESSIONAL: MORE INFORMATION

Highlights of this product
The GCM 305-216 D Professional delivers strong sawing performance for the most challenging cuts thanks to its powerful motor. This mobile mitre saw reliably handles tasks, ready to saw even long materials with control due to detachable workpiece supports and long table extensions. The dual bevel function with an ergonomic bevel lock button provides a higher degree of comfort and flexibility even for difficult cuts.

Equipment and Application
When it comes to cross-cutting, mitre cutting, and bevel cutting in wood, aluminium, and PVC plastic, the GCM 305-216 D Professional is an excellent choice. The mitre saw is compatible with all Bosch dust extraction systems, GTA work tables, and mitre saw blades with a cord.

Additional Information

• The mobile mitre saw features greater precision with dual laser lines projected to the left and right of the saw blade. Various carrying options for one or two hands and its compactness make it easy to transport.
• Impressive ergonomics: mobile mitre saw with a cutting capacity of 66 x 305 mm
• Sufficient sawing performance for the most challenging cuts

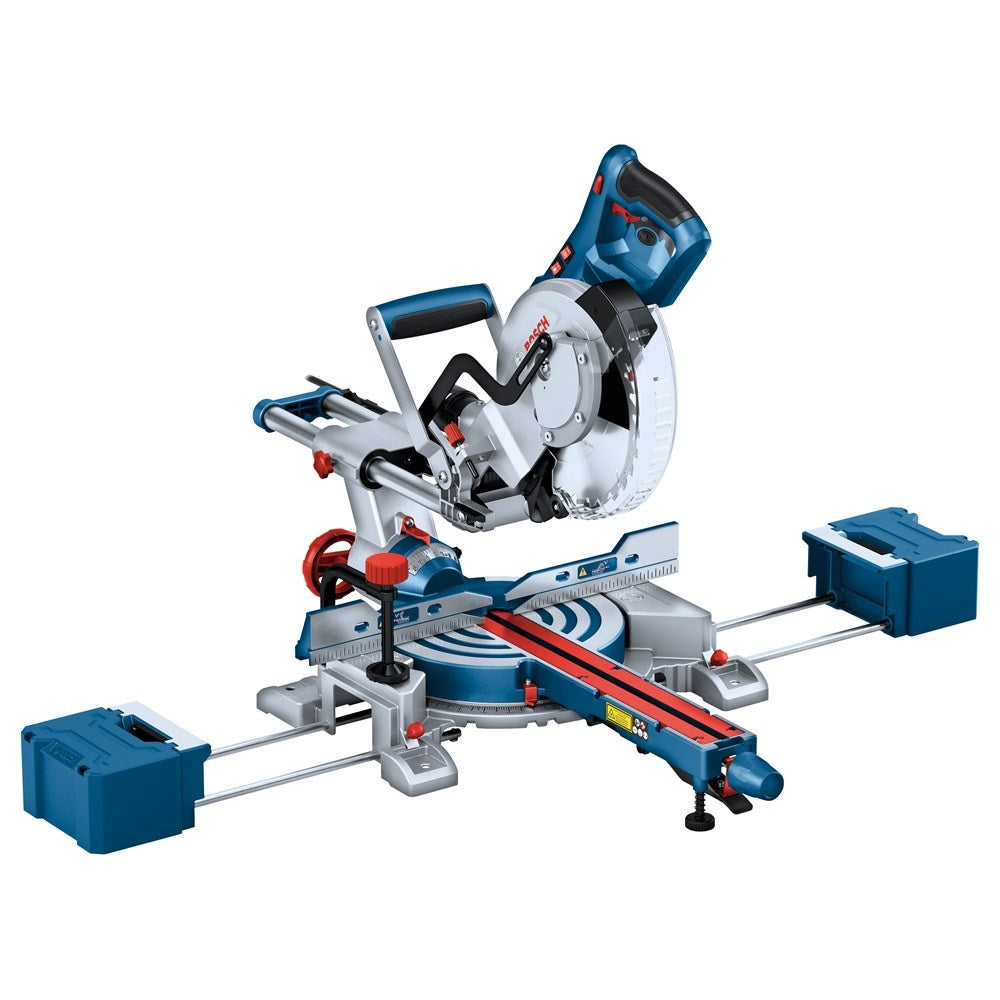

• Detachable workpiece supports and long table extensions for easy and controlled cutting of long materials

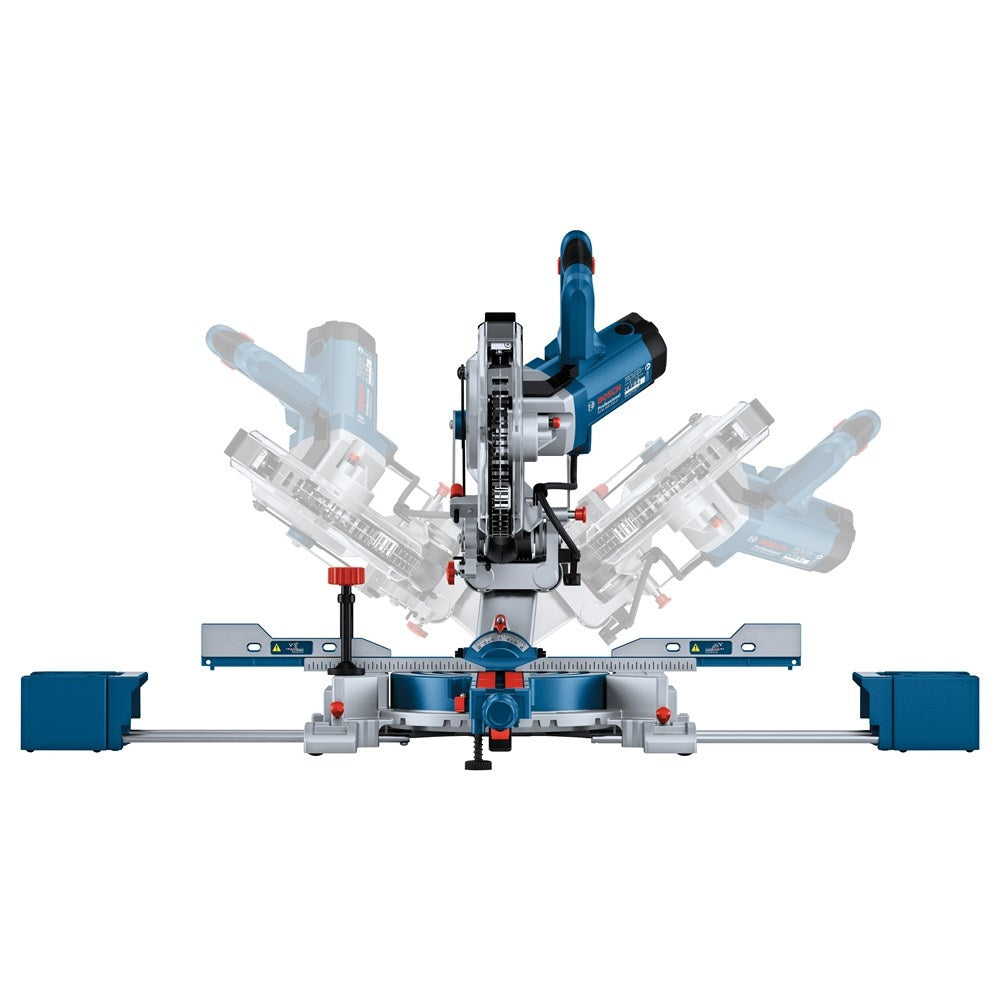

• Comfortable and flexible for difficult cuts thanks to the dual bevel function

Delivery Contents
Standard saw blade for wood, 2x workpiece supports, dust bag, clamp

Technical Specifications

Weight	16.8 kg
Nominal power input	1200 W
No-load speed	5200 min-1
Blade diameter	216 mm
Packaging dimensions (width x length x height)	575 x 800 x 360 mm
Uncertainty K	3 dB
Sound pressure level	95 dB(A)
Sound power level	109 dB(A)
Bevel setting L	47 °
Bevel setting R	47 °
Machine dimensions (width x length x height)	464 x 770 x 606 mm
Cutting capacity 0°	66 x 305 mm
Cutting capacity 45° mitre	66 x 215 mm
Cutting capacity 45° bevel	42 x 305 mm
Mitre setting L	48 °
Mitre setting R	48 °
Blade bore diameter	30 mm
